Lower Parts Kit, Forged

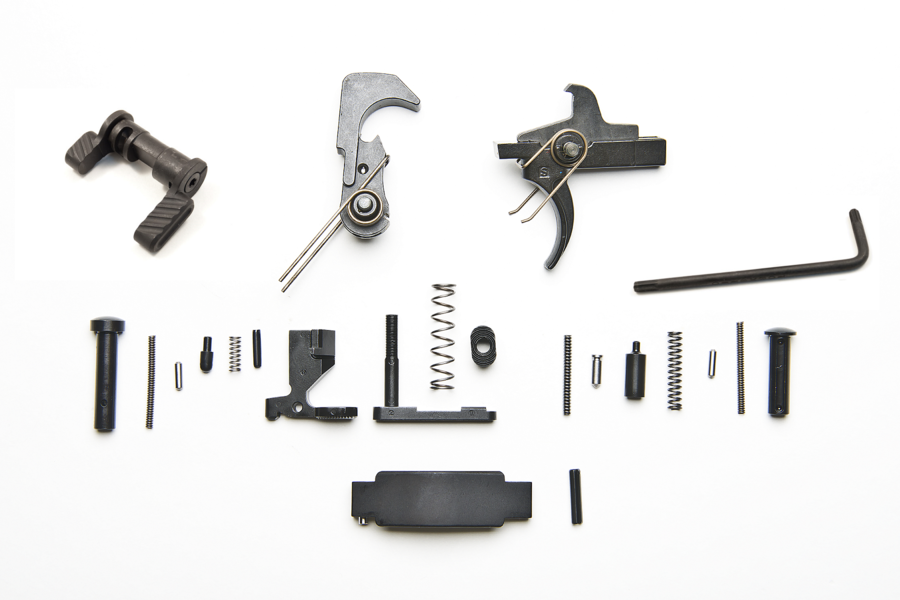

While not strictly limited to Umbrella receivers, we put this kit together as a high-quality option for customers looking to build-out their forged, mil-spec type AR-15 lowers without having to chase down individual components. This Umbrella kit includes all necessary parts to complete your forged lower receiver less the required stock assembly (receiver extension, end plate, extension nut, buffer, action spring, stock). In addition to the high-quality individual pieces, this kit includes a Schmid Elite single stage trigger/hammer group, Schmid ambidextrous selector (long lever + short lever), ambidextrous magazine catch, Magpul oversize aluminum trigger guard, and Umbrella’s own Grip 23T. For those not familiar, Schmid’s Elite GI trigger is a fantastic, but economical upgrade to the standard mil-spec AR-15 trigger. The pull is like the stock trigger but much smoother with a clean break between 3.5 to 4 pounds. And the Schmid ambidextrous 90° selector represents an excellent, but economical upgrade for the platform. Magpul’s aluminum trigger guard provides an oversized profile vs that of the straight mil-spec guard. Parts kit includes the following components:

• Pivot Pin, black nitride
• Pivot Pin Detent, stainless steel, black nitride
• Pivot Pin Spring, 17-7 PH stainless steel
• Takedown Pin, black nitride
• Takedown Pin Detent, stainless steel, black nitride
• Takedown Pin Spring, 17-7 PH stainless steel
• Schmid Bolt Catch, S7 shock resistant tool steel, manganese phosphate
• Bolt Catch Roll Pin
• Bolt Catch Plunger, black nitride
• Bolt Catch Spring, 17-7 PH stainless steel
• Magazine Button, aluminum
• Magazine Catch, ambidextrous, manganese phosphate
• Magazine Catch Spring, 17-7 PH stainless steel
• Buffer Retaining Detent, black nitride
• Buffer Detent Spring, 17-7 PH stainless steel
• Selector Detent, stainless steel, black nitride
• Selector Spring, 17-7 PH stainless steel
• Schmid Ambi Selector (90° throw w/long & short levers)
• Schmid Hammer Spring, Elite
• Schmid Trigger Spring, Elite
• Schmid Disconnector Spring, Elite
• Hammer Pin, 4140 chromoly steel alloy
• Trigger Pin, 4140 chromoly steel alloy
• Schmid Hammer, mil-spec 8620 alloy casting, manganese phosphate
• Schmid Trigger, mil-spec 8620 alloy casting, manganese phosphate
• Schmid Disconnector, 1070 high carbon steel
• Trigger Guard Roll Pin
• Magpul 6061-T6 aluminum oversized trigger guard
• Umbrella Grip 23T
• All components, material, and packaging made in the USA

As with all Umbrella products, these kits are made to the finest standards and carry an unconditional guarantee against material defects and manufacturing failure. Assembly by a qualified Armorer is required.

Note: If you own, or have ordered an Umbrella billet lower, this is not the kit for that receiver. The Umbrella billets include a number of parts already, some of which are again included in this kit. To complete your Umbrella billet lower, look for our “Billet” parts kit.
